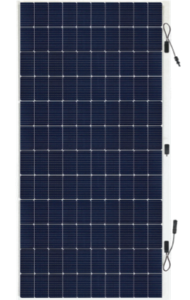

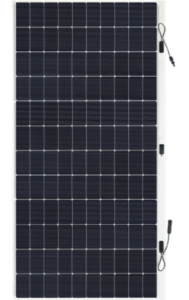

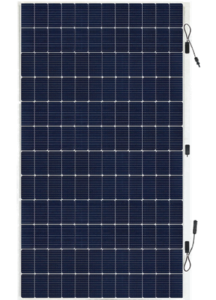

Venus 535W-555W
| Module | SF -72-18 | |||||||||
| Open – Circuit Voltage (Voc) | 46.58V | 46.68V | 46.77V | 46.87V | 46.96V | |||||
| Short – Circuit Current (Isc) | 11.11A | 11.18A | 11.27A | 11.35A | 11.43A | |||||
| Optimum Operating Voltage (Vmp) | 38.60V | 38.70V | 38.80V | 38.90V | 39.00V | |||||
| Optimum Operating Current (Imp) NMOT | 10.22A | 10.30A | 10.36A | 10.43A | 10.50A | |||||
| NMOT | 45±2 ℃ | |||||||||
| *NMOT | Irradiance 800W/m³, ambient temperature 20°C, wind speed 1m/s | |||||||||
Product Parameters
| TOPCon M10 (182*183.75mm) Cell;Ultra-light, only 20% weight of glass modules;Glass-free Module Technology; Proprietary Composite Materials; 2% first-year power degradation, 0.55% annual power degradation; Fast-Installation -> Can save labor costs 50%; Wide applications -> Can be installed on all roof applications. | Module | SF-72-18 | |||||||||
| Maximum Power at STC (Pmax) | 535W | 540W | 545W | ||||||||
| Open – Circuit Voltage (Voc) Short – Circuit Current (Isc) | 49.50V | 49.70V | 49.90V | ||||||||
| Short – Circuit Current (Isc) | 13.67A | 13.75A | 13.83A | ||||||||
| Optimum Operating Voltage (Vmp) | 41.30V | 41.50V | 41.70V | ||||||||
| Optimum Operating Current (Imp) | 12.96A | 13.02A | 13.07A | ||||||||
| Module efficiency | 20.6% | 20.8% | 21.0% | ||||||||
| Power Tolerance | 0 + 5W | ||||||||||
| Maximum System Voltage | 1500V DC (UL / IEC) | ||||||||||
| Maximum Series Fuse Rating | 25A | ||||||||||
| Operating Temperature | -40℃ C to 85℃ | ||||||||||
| * STC: Irradiance 1000W/m*, module temperature 25, AM=1.5 Optional black frame or white frame module according to customer requirements NMOT | |||||||||||
