Residential ESS/Communication ESS

Residential ESS: flexible series/parallel connecti。ns, long cycle life   Communication ESS: essential for network stability, external and integrated design

Operating Humidity0-95%RH(non-condensing)
Operating Temperature RangeCharge:0~+55℃；Discharge：-20~+60℃
Cycle life5000@25℃，0.5C,90%DOD,80%EOL     6000@25℃，0.5C，90%DOD，70%EOL
Ingress ProtectionOvercharge,Overdischarge,Overcurrent,Overheat and cryogenic Protection
MOFESTAutomatic cut-off
Communication PortRS485&CAN(Pack To Pcs),RS485(Pack to Pack)
AuthenticationUN38.3,MSDS
Serial SupportNot Support
Parallel SupportSupport max 15 PCS
Overcharge alarm & Protection
Overcharge Alarm3.5V(for cell) 52.5V(for pack)        3.5V(for cell) 28V(for pack)
Overcharge Protection3.65V(for cell) 54.75V(for pack)        3.65V(for cell) 29.2V(for pack)
Overcharge Protection Delay1000ms                  1000ms
Overcharge release3.45V(for cell) 51.75V(for pack)        3.45V(for cell) 27.6V(for pack)
Over discharge alarm and protection
Over discharge alarm 2.9V(for cell) 43.5V(for pack)        2.9V(for cell) 23.2V(for pack)
Over discharge protection2.7V(for cell) 40.5V(for pack)        2.7V(for cell) 21.6V(for pack)
Over discharge protection delay1000ms              1000ms
Release over release2.95V(for cell) 44.25V(for pack)        2.95V(for cell) 23.6V(for pack)

Product Parameters

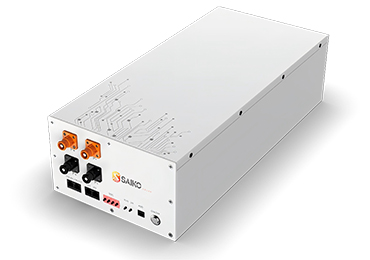

 51.2V 200Ah51.2V 100Ah25.6V 100Ah
Parameters
Nominal Voltage(V)51.251.225.6
Nominal Capacity(Ah)200100100
Total Energy(KWh)10.245.122.56
Maximum Continuous Charge Current(A)150100100
End of Charge Voltage(V)57.657.628.8
Maximum Continuous Discharge Current(A)150100100
End of Discharge Voltage(V)44.844.844.8
Dimensions(W*D*H mm)150*560*865400*520*145245*530*145
Weight(kg)8340.520
Ingress ProtectionIP20IP20IP20
