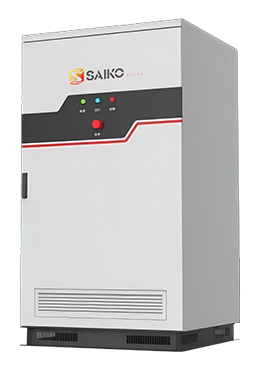

Air-cooling all-in-one cabinet
The air-cooling all-in-one cabinet::Pack level accordion duct air cooling system;Excellent environment adaptability and maintenance convenien
| System Parameters | |
| Charge-discharge efficiency | ＞92% |
| Charge-discharge rate | 0.5P |
| Depth of discharge | 90%DOD |
| Number of cycles | ≥6000cyc@25℃。90%DOD，80%EOL |
| Cabinet protection level | IP54 |
| Battery Pack protection Rating | IP20 |
| Corrosion Protection Level | C3/C5 |
| Cooling Method | Air-cooled |
| Operating temperature | -20℃~55℃ |
| Operating humidity | 5%~95%RH(Non-condensing) |
| Working Altitude | 2000m(＞2000mDerating) |
| Fire Protection Medium | Perfluorohexanone |
| Maximum number of parallel machines | 10 |
| Communication Interface | Ethernet/RS485 |
| Control mode | Local EMS/Cloud Platform/Mobile APP |
| Three-Phase imbalance Governance | Support |
| Off-Grid mode | Support |
| Dimensions(W*D*H mm) | 1100*1100*2000mm(W*D*H) |
| Weight(kg) | 2600 |
Product Parameters
| DC Parameters | AC Parameters | ||
| Battery Cell Type | LFP 3.2V/314Ah | Rated Power(KW) | 125 |
| Battery Module Cofiguration | 10.048KWh/1P10S | Maximum Power（KW） | 137.5 |
| Battery Pack Cofiguration | 20.096kwh/1P20S | Rated Current(A） | 180 |
| Battery System cofiguration | 241.152kwh/1P240S | Wiring Method | Three-phase four-wire |
| Rated Voltage | 768V | Allowed grid voltage(VAC) | 380/400(-15%-15%) |
| Voltage Range | 672-864V | Allowed grid voltage(HZ) | 50/60(-2.5-2.5) |
| System Capacity | 241.152KWh | Total Current Harmonic Distortion Rate | ≤3% |
| Rated Charge/Discharge Power | 0.5P | Voltage ripple coefficient | ≤1 |
| Power factor | 0.99/-1-1 |
