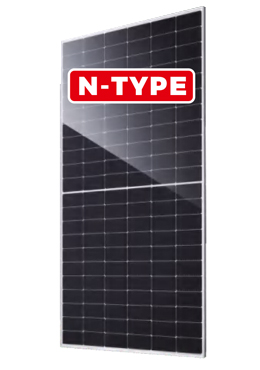

Module SN78-18X(ND)-F(Bifaciality 80±10%)
Maximum Power483W488W492W494.5W489.4W
Open -Circuit Voltage(Voc)53.37V53.40V53.43V53.46V53.49V
Short-Circuit Current(lsc)11.58A11.64A11.70A11.76A11.82A
Optimum Operating Voltage(Vmp)44.10V44.21V44.32V44.43V44.54V
Optimum Operating Current(lmp)10.95A11.01A11.07A11.13A11.19A
NMOT45±2℃
Iradiance 800W/m²,ambient temperature 20℃,wind speed 1m/s

Electrical Characteristics

ModuleSN78-18X(ND)-F
Maximum Power at STC(Pmax)635W640W645W650W655W
Open-Circuit Voltage(Voc)55.98V56.12V56.26V56.40V56.54V
Short-Circuit Current (Isc)14.43A14.51A14.59A14.67A14.75A
Optimum Operating Voltage(Vmp)46.41V46.57V46.71V46.86V47.00V
Optimum Operating Current(Imp)13.68A13.75A13.82A13.89A13.95A
Module efficiency22.7%22.9%23.1%23.3%23.5%
Power Tolerance0~+5%
Maximum System Voltage  1500V DC(UL/IEC)
Maximum Series Fuse Rating25A
Operating Temperature-40 Cto +85℃
“STC:Irradiance 1000W/m²,module temperature 25,AM=1.5
Optional black frame or white frame module according to customer requiements
