Mechanical Characteristics

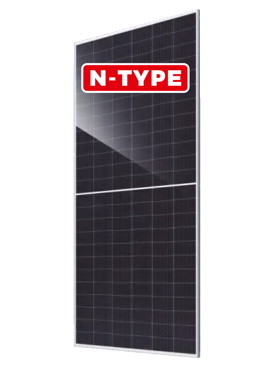

Solar CellN-Type Mono
No. of cells132(6*22)
Dimensions2382*1134*30mm
Weight33.7±0.5kg
Front Glass2.0 mm Coated semi-tempered glass
FrameAnodized Aluminium Alloy(reinorced high-load optional)
Junction BoxIP68 rated(3 by pass diodes)
ConnectorMC4 compatible
Mechanical Load TestFront 5400Pa/Rear 2400 Pa

Electrical Characteristics

Module  SN66-18X+(ND)
Maximum Power at STC(Pmax)615W620W625W630W635W
Open-Circuit Voltage(Voc)  48.90V49.10V49.30V49.50V49.70V
Short-Circuit Current (Isc)  16.02A16.08A16.14A16.21A16.27A
Optimum Operating Voltage(Vmp)  40.75V40.90V41.05V41.20V41.35V
Optimum Operating Current(Imp)  15.10A15.16A15.23A15.30A15.36A
Module efficiency  22.8%23.0%23.1%23.3%23.5%
Power Tolerance0~+5%
Maximum System Voltage1500V DC(UL/IEC)
Maximum Series Fuse Rating35A
Operating Temperature-40 Cto +85℃
STC:Irradiance 1000W/m²,module temperature 25,AM=1.5
Optional black frame or white frame module according to customer requiements

NMOT

Module                                                SN66-18X+(ND)-F(Bifaciality 80±10%)
Maximum Power464W468W  472W476W480W
Open-Circuit Voltage(Voc)46.43V46.62V  46.82V47.02V47.22V
Short-Circuit Current(lsc)12.93A12.98A  13.03A13.08A13.13A
Optimum Operating Voltage(Vmp)38.10V38.25V  38.45V38.62V38.81V
Optimum Operating Current(lmp)12.19A12.24A  12.29A12.34A12.37A
NMOT    45±2℃
NMOT:Iradiance  800W/m²,ambient temperature  20℃,wind  speed  1m/s
