Mechanical Characteristics

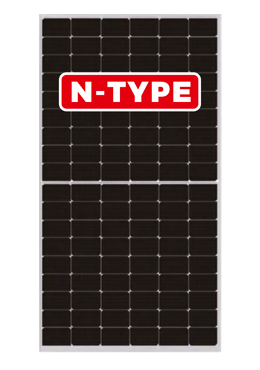

Solar CellN-Type Mono
No. of cells108(6*18)
Dimensions1961*1134*30mm
Weight27.5kg
Front Glass2.0 mm Coated semi-tempered glass
FrameAnodized Aluminium Alloy(reinorced high-load optional)
Junction BoxIP68 rated(3 by pass diodes)
ConnectorMC4 compatible
Mechanical Load TestFront 5400Pa/Rear 2400 Pa

ELECTRICAL PARAMETERS

POWER CLASS SKND-490   SKND-495SKND-500  SKND-505  SKND-510
 STCNMOT   STCNMOTSTCNMOT  STCNMOT  STCNMOT
Maximum power(Pmax)490W368W   495W372W500W376W  505W380W  510W384W
Open Circuit Voltage(Voc)39.55V37.12V   39.78V37.36V40.00V37.59V  40.22V37.83V  40.44V38.06V
Short Circuit Current(lsc)15.72A12.58A   15.78A12.62A15.84A12.67A  15.90A12.72A  15.96A12.77A
Voltage at Maximum power(Vmpp)33.11V31.08V   33.31V31.29V33.51V31.50V  33.71V31.71V  33.91V31.91V
Current Maximum Power(Impp)14.80A11.84A   14.86A11.89A14.92A11.94A  14.98A11.98A  15.04A12.03A
MODULE EFFICIENCY(%22.03%    22.26% 22.48%   22.71%   22.93%
STC:Irradiance 1000W/m²,cell temperature 25℃,AM1.5G        NMOT:Iradiance800W/m²,ambient temperature 20℃,wind speed 1m/s,AM1.5G
